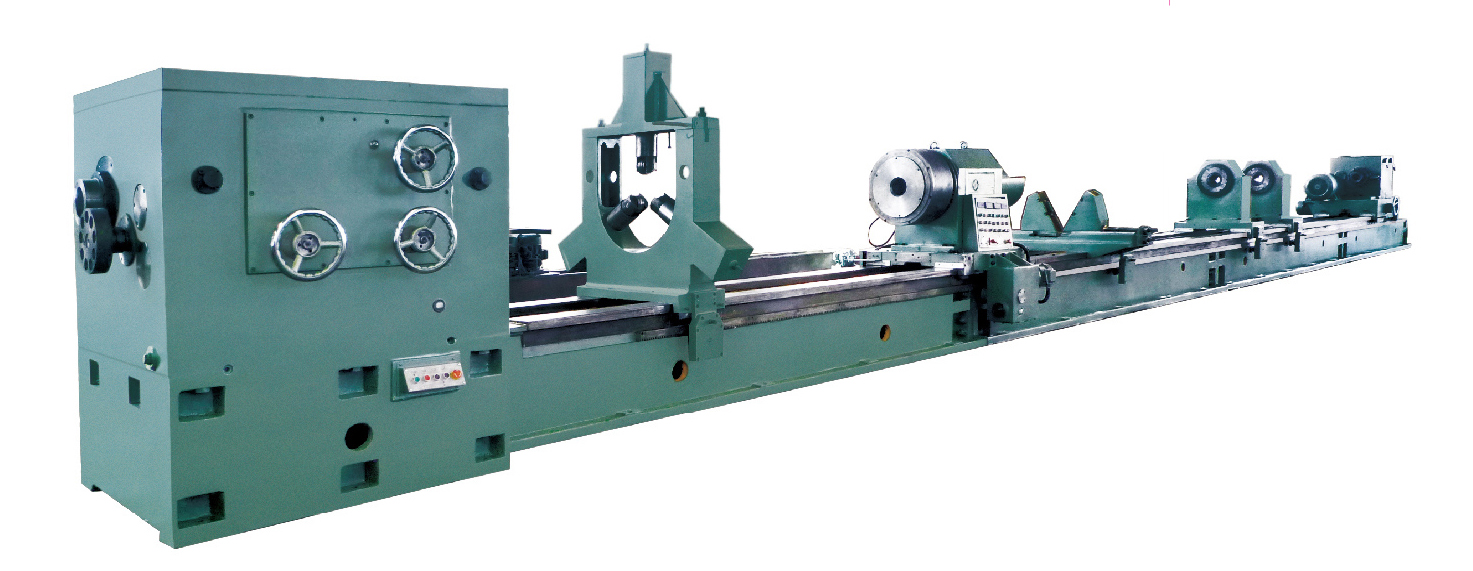

Machine tool usage:
♦ Specialized in processing cylindrical deep hole workpieces
♦ Such as spindle holes for machining machine tools, various mechanical hydraulic cylinders, cylindrical through holes, blind holes, and stepped holes.
♦ Machine tools can not only undertake drilling and boring, but also perform rolling processing.
♦ Internal chip removal method is used during drilling.
♦ The machine tool bed has strong rigidity and good precision retention.
♦ The spindle speed range is wide, and the feed system is driven by an AC servo motor, which can adapt to the needs of various deep hole machining processes.
♦ The oil feeder and workpiece clamping are secured using hydraulic devices with instrument display, ensuring safety and reliability.
♦ This machine tool is a series of products and can also provide various deformation products according to customer needs.
Main technical parameters:
scope of work
Drilling diameter range -------------------Φ40～Φ120mm
Maximum diameter of boring hole --------------Φ630mm
Range of nesting diameter ----------------------Φ120～Φ340mm
The maximum depth of boring hole is---- 1-16m (one specification per meter)
The diameter range of the center frame clamp is -----Φ110～Φ670mm
The clamping diameter range of the workpiece bracket is from --------------330 to 1000mm
spindle part
Spindle center height: ---------------630mm
Headboard spindle aperture -------------------Φ120mm
Front end taper hole of headstock spindle ------------Φ140mm 1:20
The speed range of the headstock spindle is from ---------16 to 270r/min; Level 12
Feed section
Feed rate range:---------------------------- 5-500mm/min; stepless
Rapid moving speed of the trailer: ------------2m/min
Motor part
Main motor power: -------------------------45kW
Hydraulic pump motor power:----------------- 1.5 kW
Fast moving motor power -------------------5.5 kW
Feed motor power ---------------------------------7.5kW (servo motor)
Cooling pump motor power ----------------------------11kWx2+7.5kW
other parts
Rail width ------------------------------800mm
Rated pressure of cooling system ---------2.5 MPa
Cooling system flow rate ----------200, 400, 600L/min
Rated working pressure of hydraulic system: -------6.3MPa
The oil feeder can withstand a maximum axial force of -------68kN
The maximum tightening force of the oil feeder on the workpiece is----- 20 kN
Drill pipe box part (optional)
Drill pipe box spindle aperture -----------------------------Φ100mm
Drill pipe box spindle front end taper hole ---------Φ120mm 1:20
The speed range of the main shaft of the drill pipe box is from------ 82 to 490 r/min; Level 6
Drill pipe box motor power: ------30KW
