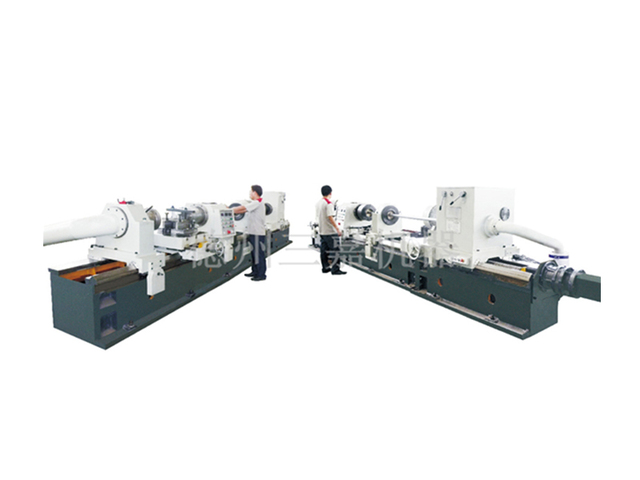

Machine tool usage:
♦ Specialized in processing special-shaped deep hole workpieces.
♦ Such as processing various boards, plastic molds, blind holes, and stepped holes.
♦ Machine tools can undertake drilling and boring processes, and the internal chip removal method is used during drilling.
♦ The machine tool bed has strong rigidity and good precision retention.
♦ This machine tool is a series of products and can also provide various deformation products according to customer needs.
Main technical parameters:
scope of work
Range of drilling diameter - - - - - - ---------- - - - - Φ40～Φ80mm
Maximum diameter of boring hole - - - - - - - - - - -Φ200mm
The maximum depth of boring hole is -----------------1-5m
Range of nesting diameter - - - - - - - --------------- - Φ50～Φ140mm
spindle part
Spindle center height: ----------------------------------350mm/450mm
Drill pipe box section
Drill pipe box front taper hole ---------------------------------Φ100
Drill pipe box spindle front end taper hole --------------Φ120 1:20
Range of spindle speed for drill pipe box -----82 to 490r/min; Level 6
Feed section
Feed speed range: --------------------------------5-500mm/min; stepless
Fast moving speed of pallet----------------------: 2m/min
Motor part
Drill pipe box motor power: ----------30kW
Fast moving motor power ------------4 kW
Feed motor power: -------------------4.7kW
Cooling pump motor power: --------5.5kWx2
other parts
Rail width ---------------------------------------------650mm
Rated pressure of cooling system ------------------2.5 MPa
Cooling system flow rate --------------------------100, 200L/min
The size of the workbench is ------determined based on the size of the workpiece
