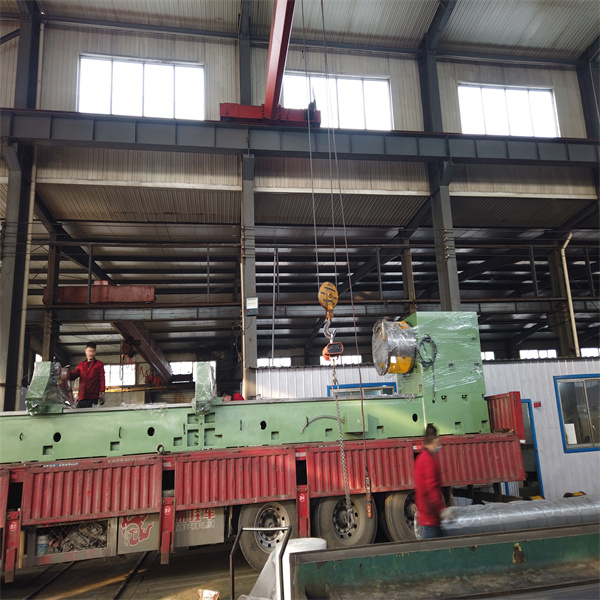

Product Introduction：
◆This machine tool is a deep-hole machining tool, capable of drilling, boring, and nesting deep holes in large-diameter heavy-duty parts。
◆During machining, the workpiece rotates at a low speed, while the tool rotates at a high speed and feeds。
◆The drilling process adopts the BTA (Bore Through Aperture) internal chip evacuation technique。
◆During boring, the process involves using the boring bar to supply cutting fluid forward (towards the head end) and discharging the chips。
◆When nesting, the process method of external chip removal is adopted, which requires the use of dedicated nesting tools, tool holders, and specialized fixtures。
◆According to the machining requirements, the machine tool is equipped with a drill (boring) rod box, allowing the tool to rotate and feed。
Main technical specifications and performance：
scope of work|
|
|
||
|
|
Drill diameter range |
Φ50-150mm |
/ |
|
Maximum diameter of boring hole |
Φ800mm |
||
|
Maximum depth of boring |
1-16m |
||
|
Nesting diameter range |
Φ150-Φ500mm |
||
|
Workpiece clamping diameter range |
Φ270-Φ1200mm |
||
|
spindle |
Spindle center height |
800mm |
|
|
Spindle bore diameter of the headstock |
Φ120mm |
||
|
Front taper hole of the spindle |
Φ140mm，1：20 |
||
|
Spindle speed range |
1-200r/min 3gear stepless |
||
|
drill pipe box |
Diameter of the main shaft hole of the drill rod box |
Φ120mm |
/ |
|
Cone hole at the front end of the main shaft of the drill rod box |
Φ140mm，1：20 |
/ |
|
|
Rotating speed range of drill pipe box |
6-270r/min 12 kinds |
/ |
|
|
feed |
Feed rate range (stepless) |
5-500mm/min |
|
|
Rapid movement range of carriage |
2m/min |
||
|
motor |
Main motor power |
55kw |
|
|
Motor power of drill rod box |
45kw |
无 |
|
|
Hydraulic pump motor power |
1.5kw n=440r/min |
||
|
Rapidly moving motor power |
7.5kw |
||
|
Feed motor power |
7.5kw（servo motor） |
||
|
Cooling pump motor power |
11kw*2+5.5kw*2 |
7.5kw*3 |
|
|
other |
guide rail width |
1250mm |
|
|
Rated pressure of cooling system |
2.5Mpa |
0.36Mpa |
|
|
Cooling system flow rate |
200，400，600，800L/min |
300，600，900L/min |
|
|
Rated working pressure of hydraulic system |
6.3Mpa |
||
|
The oil feeder can withstand the maximum axial force |
68KN |
||
|
Maximum clamping force of the oil applicator on the workpiece |
20KN |
||
Outline dimensions and weight：
|
1000 |
2000 |
3000 |
4000 |
5000 |
6000 |
7000 |
8000 |
9000 |
10000 |
|
|
Length × Width × Height |
13000* 4000* 2500 |
15000* 4000* 2500 |
17000* 4000* 2500 |
20000* 4000* 2500 |
22000* 4000* 2500 |
24000* 4000* 2500 |
26000* 4000* 2500 |
29000* 4000* 2500 |
31000* 4000* 2500 |
33000* 4000* 2500 |
|
Net weight（t） |
53 |
56 |
59 |
63 |
66 |
69 |
72 |
76 |
79 |
82 |
