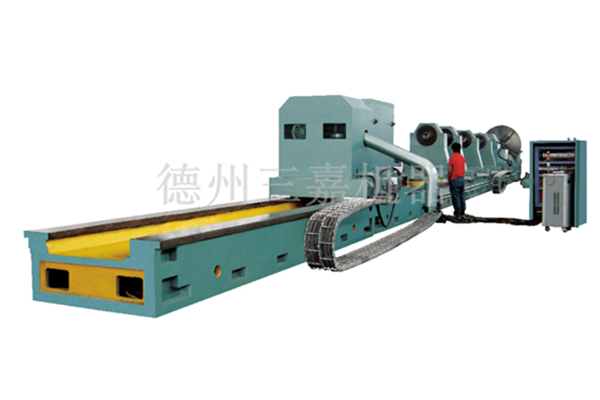

TS21160 heavy-duty deep hole drilling and boring machine

♦ Capable of performing drilling, boring, and trepanning operations on large-diameter, heavy-duty components.

Machining Processes:

♦ During machining, the workpiece rotates at a low speed while the cutting tool rotates at a high speed and feeds.
♦ For drilling operations, the BTA (Boring and Trepanning Association) internal chip removal process is employed.
♦ During boring operations, cutting fluid is supplied internally through the boring bar and discharged forward (towards the headstock end), along with the removal of chips.
♦ Trepanning operations utilize an external chip removal process, requiring specialized trepanning tools, tool shanks, and dedicated workholding fixtures.
♦ According to machining requirements, the machine is equipped with a drill (boring) spindle box, enabling tool rotation and feeding.

Main Technical Parameters:

Working Range:

• Drilling Diameter Range: Φ60 to Φ180 mm
• Maximum Boring Diameter: Φ1000 mm
• Trepanning Diameter Range: Φ150 to Φ500 mm
• Maximum Boring Depth: 1-20 m (one specification per meter)
• Chuck Clamping Diameter Range: Φ270 to Φ2000 mm

Spindle Section:

• Spindle Center Height: 1250 mm
• Headstock Front Taper Hole: Φ120
• Headstock Spindle Front Taper Hole: Φ140 1:20
• Headstock Spindle Speed Range: 1 to 190 r/min; 3-speed stepless

Feed Section:

• Feed Speed Range: 5 to 500 mm/min; stepless
• Carriage Rapid Travel Speed: 2 m/min

Motor Section:

• Main Motor Power: 75 kW
• Hydraulic Pump Motor Power: 1.5 kW
• Rapid Travel Motor Power: 7.5 kW
• Feed Motor Power: 11 kW
• Cooling Pump Motor Power: 11 kW + 5.5 kW x 4 (5 sets)

Other Sections:

• Guideway Width: 1600 mm
• Rated Pressure of Cooling System: 2.5 MPa
• Flow Rate of Cooling System: 100, 200, 300, 400, 700 L/min
• Rated Working Pressure of Hydraulic System: 6.3 MPa
• Maximum Axial Force Bearing Capacity of Oil Feeder: 68 kN
• Maximum Clamping Force of Oil Feeder on Workpiece: 20 kN

Drill Spindle Box Section (Optional):

• Drill Spindle Box Front Taper Hole: Φ120
• Drill Spindle Box Spindle Front Taper Hole: Φ140 1:20
• Drill Spindle Box Spindle Speed Range: 16 to 270 r/min; 12-speed
• Drill Spindle Box Motor Power: 45 kW
