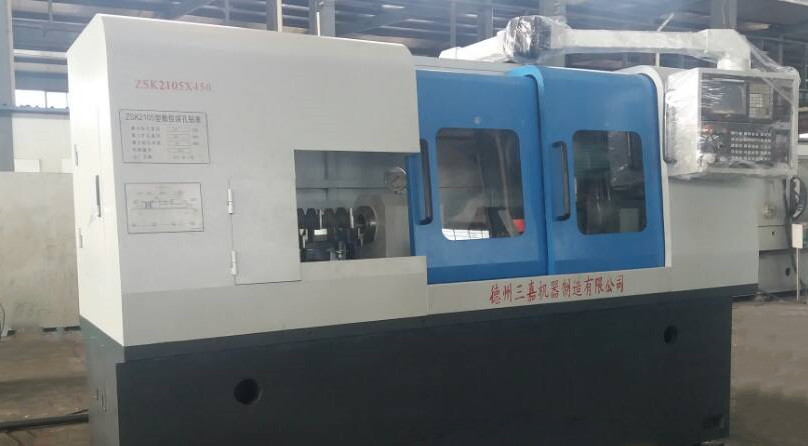

Machine Tool Applications:
♦ Used for deep-hole drilling of cylindrical bar stock.
Machining Process:
♦ It is a highly efficient, precise, and automated machine tool for drilling small holes using the external chip removal method (gun drilling method).
♦ Achieves machining quality typically requiring drilling, reaming, and boring operations in a single continuous drilling process.
Machining Accuracy:
♦ Bore diameter accuracy ranges from IT7 to IT10.
♦ Surface roughness ranges from RA3.2 to 0.04μm.
♦ The straightness of the bore centerline is ≤0.05mm per 100mm length.
Technical Specifications
Product Models/Parameters
Model
ZSK21008
ZSK2102
ZSK2103
ZSK2104
Working Range
Machining Bore Diameter Range
Φ1-Φ8mm
Φ3-Φ20mm
Φ5-Φ40mm
Φ5-Φ40mm
Maximum Machining Depth
10-300mm
30-3000mm
(Note: Maximum depth not specified for ZSK2103 beyond general range; assume similar to others or clarify.)
(Same as above)
Spindle
Number of Spindles
1
1, 2, 3, 4
1, 2
1
Spindle Speed
350r/min
350r/min
150r/min
150r/min
Drill Spindle Box
Speed Range of Drill Spindle Box
3000-20000r/min
500-8000r/min
600-6000r/min
200-7000r/min
Feed
Feed Speed Range
10-500mm/min
10-350mm/min
(Note: Feed speed range not specified for ZSK2103; assume similar to others or clarify.)
(Same as above, if applicable)
Rapid Tool Movement Speed
5000mm/min
3000mm/min
(Note: Rapid movement speed not specified for ZSK2103; assume similar to others or clarify.)
(Same as above, if applicable)
Motors
Power of Drill Spindle Box Motor
2.5kw
4kw
5.5kw
7.5kw
Power of Headstock Motor
1.1kw
2.2kw
2.2kw
3kw
Feed Motor (Servo Motor) Torque
4.7N·M
7N·M
8.34N·M
11N·M
Others
Cooling Oil Filtration Precision
8μm
30μm
(Note: Filtration precision not specified for ZSK2103 and ZSK2104; assume similar to others or clarify.)
(Same as above, if applicable)
Coolant Pressure Range
1-18MPa
1-10MPa
(Note: Pressure range not specified for ZSK2103 and ZSK2104; assume similar to others or clarify.)
(Same as above, if applicable)
Maximum Coolant Flow Rate
20L/min
100L/min
100L/min
150L/min
CNC
CNC System
Beijing KND (standard configuration), SIEMENS 802 series, FANUC, etc. available as options. Special machines can be customized based on workpiece requirements.
