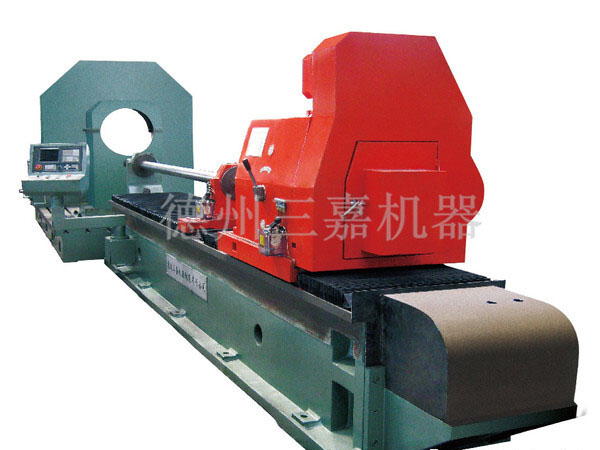

The 2MSK2150 CNC deep-hole power honing machine is suitable for honing and polishing cylindrical deep-hole workpieces, such as precision pipe fittings including various hydraulic cylinders and gas cylinders. It is also capable of honing and polishing workpieces with stepped holes. The machining accuracy of the hole diameter can reach IT8-IT9 grade or higher, and the surface roughness can achieve Ra0.2-0.4μm. By adopting local honing, it can correct the taper, ellipticity, and local hole diameter errors of the workpiece. For some cold-drawn steel tubes, direct power honing can be performed. The 2MSK2150 CNC deep-hole power honing machine is an ideal piece of equipment with high precision and efficiency.
This CNC deep-hole power honing machine is equipped with a KND CNC system and AC servo motors. The grinding spindle box features stepless speed regulation. The reciprocating motion of the honing head is achieved through sprockets and chains, allowing precise control of the honing position. Additionally, it employs dual linear guide rails, providing high service life and accuracy. The honing head utilizes hydraulic constant-pressure expansion, ensuring a stable and unchanging honing force from the abrasive strips to guarantee the roundness and cylindricity of the workpiece. The honing pressure can be adjusted as needed, with high and low-pressure control settings, enabling easy switching between rough and finish honing from the control panel. Other configurations of the machine tool are as follows: renowned brands are used for hydraulic valves and automatic lubrication stations.
Moreover, the CNC system, linear guide rails, hydraulic valves, and other configurations of this CNC deep-hole power honing machine can be selected or specified according to user requirements.
Main Technical Parameters:
Working Range
Spindle Section
Grinding Spindle Box Section
Feed Section
Motor Section
Other Sections
CNC
