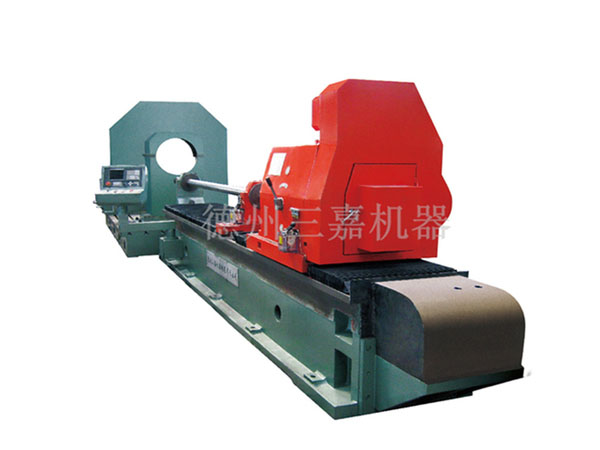

2MSK2150 CNC Deep-Hole Power Honing Machine
Machine Tool Applications:
♦ Suitable for honing and polishing cylindrical deep-hole workpieces.
Machining Accuracy:
♦ The machined hole diameter accuracy can reach IT8-IT9 grade or higher.
■ The 2MSK2150 CNC deep-hole power honing machine is an ideal piece of equipment with high precision and efficiency.
Machine Tool Configuration:
♦ This CNC deep-hole power honing machine is equipped with a KND CNC system and AC servo motors.
Other machine tool configurations are as follows:
♦ Renowned brands are used for hydraulic valves, automatic lubrication stations, etc.
■ Additionally, the CNC system, linear guide rails, hydraulic valves, and other configurations of this CNC deep-hole power honing machine can be selected or specified according to user requirements.
Main Technical Parameters:
Working Range
Spindle Section
Grinding Spindle Box Section
Feed Section
Motor Section
Other Sections
CNC
♦ Examples include precision pipe fittings such as various hydraulic cylinders and gas cylinders.
♦ Capable of honing and polishing workpieces with stepped holes.
♦ Surface roughness can achieve Ra0.2-0.4μm.
♦ Local honing can correct the taper, ellipticity, and local diameter errors of the workpiece.
♦ Direct power honing can be performed on some cold-drawn steel tubes.
♦ The grinding spindle box features stepless speed regulation.
♦ The honing head reciprocates via a sprocket and chain system, allowing precise control of the honing position.
♦ Dual linear guide rails are used, providing high service life and accuracy.
♦ The honing head employs hydraulic constant-pressure expansion, ensuring stable honing force from the abrasive strips to maintain the workpieces roundness and cylindricity.
♦ The honing pressure can be adjusted as needed, with high and low-pressure control settings, enabling easy switching between rough and finish honing from the control panel.
