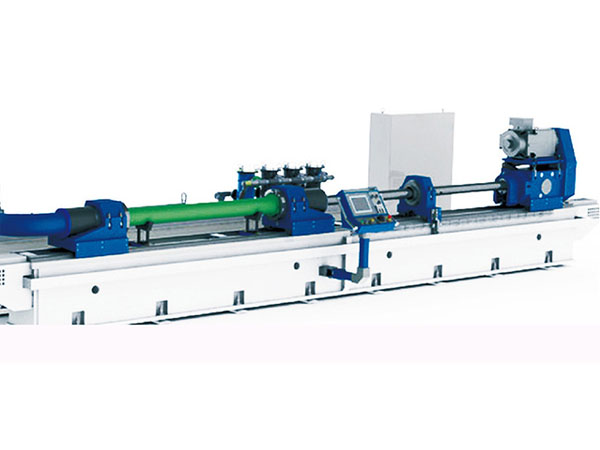

Machine Tool Applications:
◆ The CNC deep-hole boring, reaming, and rolling machine offers efficiency 5-8 times higher than that of conventional deep-hole boring and honing machines.
◆ It is a specialized processing equipment for manufacturing hydraulic cylinders.
◆ It integrates rough boring and finish boring into one process, utilizing push boring to complete both rough and finish boring in a single pass. After boring, it takes advantage of the tool retraction moment to simultaneously complete the rolling process.
◆ Rolling processing enables the workpiece to achieve a surface roughness of Ra0.4.
◆ Deep-hole rolling technology is a non-cutting process that achieves the required surface roughness of the workpiece through plastic deformation of the inner bore surface.
Advantages of Rolling:
◆ Improves surface roughness, generally achieving Ra ≤ 0.4μm.
◆ Corrects roundness, with ellipticity reaching ≤ 0.03mm and coaxiality ≤ 0.06mm.
◆ Enhances surface hardness, eliminating deformation under load and increasing hardness by HV ≥ 4°.
◆ Leaves a residual stress layer after processing, improving fatigue strength by 30%.
◆ Improves fit quality, reduces wear, and extends the service life of parts, while reducing processing costs.
Machining Accuracy:
◆ Surface roughness of the bored workpiece ≤ Ra3.2μm.
◆ Surface roughness of the rolled workpiece ≤ Ra0.4μm.
◆ Cylindricity of the processed workpiece ≤ 0.027/500mm.
◆ Roundness of the processed workpiece ≤ 0.02/100mm.
Main Technical Parameters:
TGK25
TGK35
Working Range
Boring Diameter Range
Φ40～Φ250mm
Φ40～Φ350mm
Maximum Boring Depth
1-9m
1-9m
Workpiece Clamping Range
Φ60～Φ300mm
Φ60～Φ450mm
Spindle Section
Spindle Center Height
350mm
450mm
Boring Spindle Box Section
Front Taper of Spindle
Φ100 1:20
Φ100 1:20
Speed Range (Stepless)
30～1000r/min
30～1000r/min
Feed Section
Speed Range (Stepless)
5-1000mm/min
30～1000mm/min (Note: This appears to be a typo in the original and should likely be consistent with the TGK25s feed speed range or clarified.)
Carriage Rapid Traverse Speed
3m/min
3m/min
Motor Section
Boring Spindle Box Motor Power
60kW
60kW
Hydraulic Pump Motor Power
1.5kW
1.5kW
Clamping Frame Rapid Traverse Motor Power
4kW
4kW
Feed Motor Power
11kW
11kW
Cooling Pump Motor Power
7.5kWx2
7.5kWx3
Other Sections
Cooling System Rated Pressure
2.5MPa
2.5MPa
Cooling System Flow Rate
200, 400L/min
200, 400, 600L/min
Hydraulic System Rated Working Pressure
6.3MPa
6.3MPa
Maximum Clamping Force of Oil Feeder
60kN
60kN
Magnetic Separator Flow Rate
800L/min
800L/min
Pressure Bag Filter Flow Rate
800L/min
800L/min
Filtration Precision
50μm
50μm
